Paddle Spacer
Also called: Paddle Spacer, Paddle Spacer Ring
Standard:ASME/ANSI B16. 48, B16.5, B16. 47 A, ГОСТ 12826-60.
Size Range: 15 mm-1500' mm (1/2"-60")
Sealing Type: Flat Face, Raised Face, Ring Joint
Materials: 321, 304/304L, 316/316L,316Ti,16MN, St.20 09Г2С, 12Х18Н10Т, 10Х17Н13М2Т, 08Х17Н13М2Т

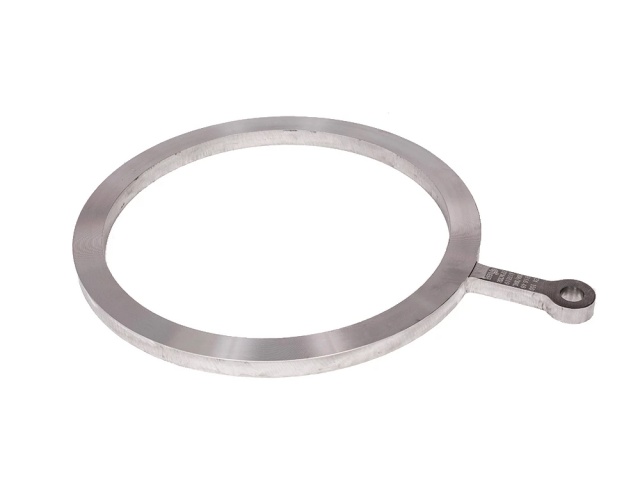

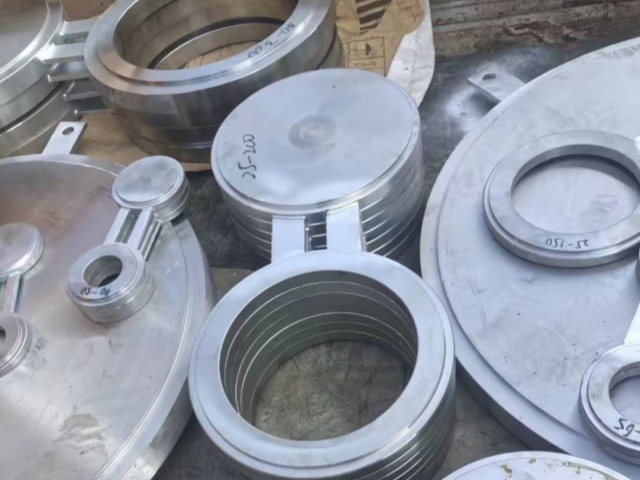

A Paddle Spacer is the "open" counterpart to a Paddle Blank in pipeline isolation systems . It is a metal disc with a bore (opening) through its center, designed to be installed between two pipe flanges to allow unrestricted flow of media .

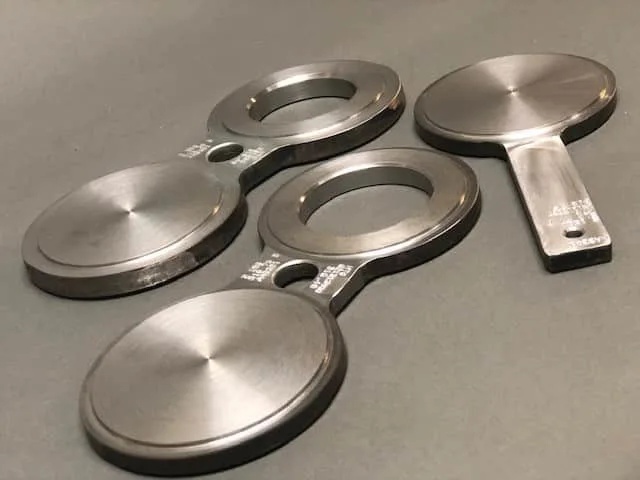

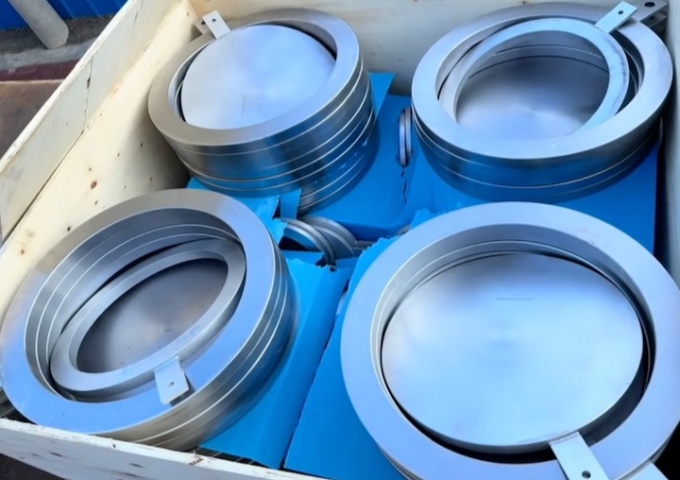

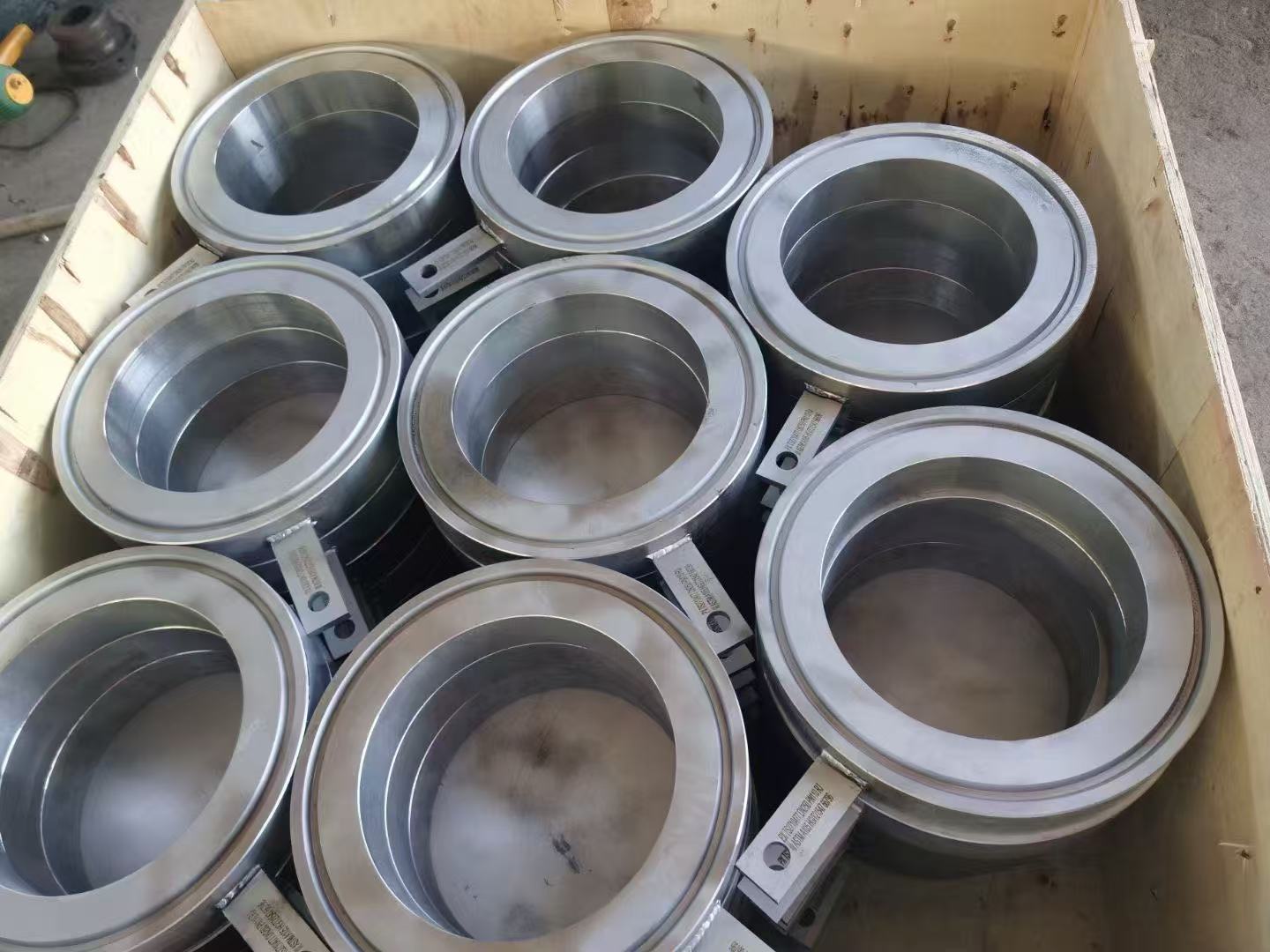

The paddle spacer features a distinctive handle that extends beyond the flange outer diameter, providing clear visual indication that the line is in the "open" or flow position. Together with a Paddle Blank, it forms a complete isolation system where the spacer maintains flow during normal operation and can be replaced with a blank during maintenance or shutdown .

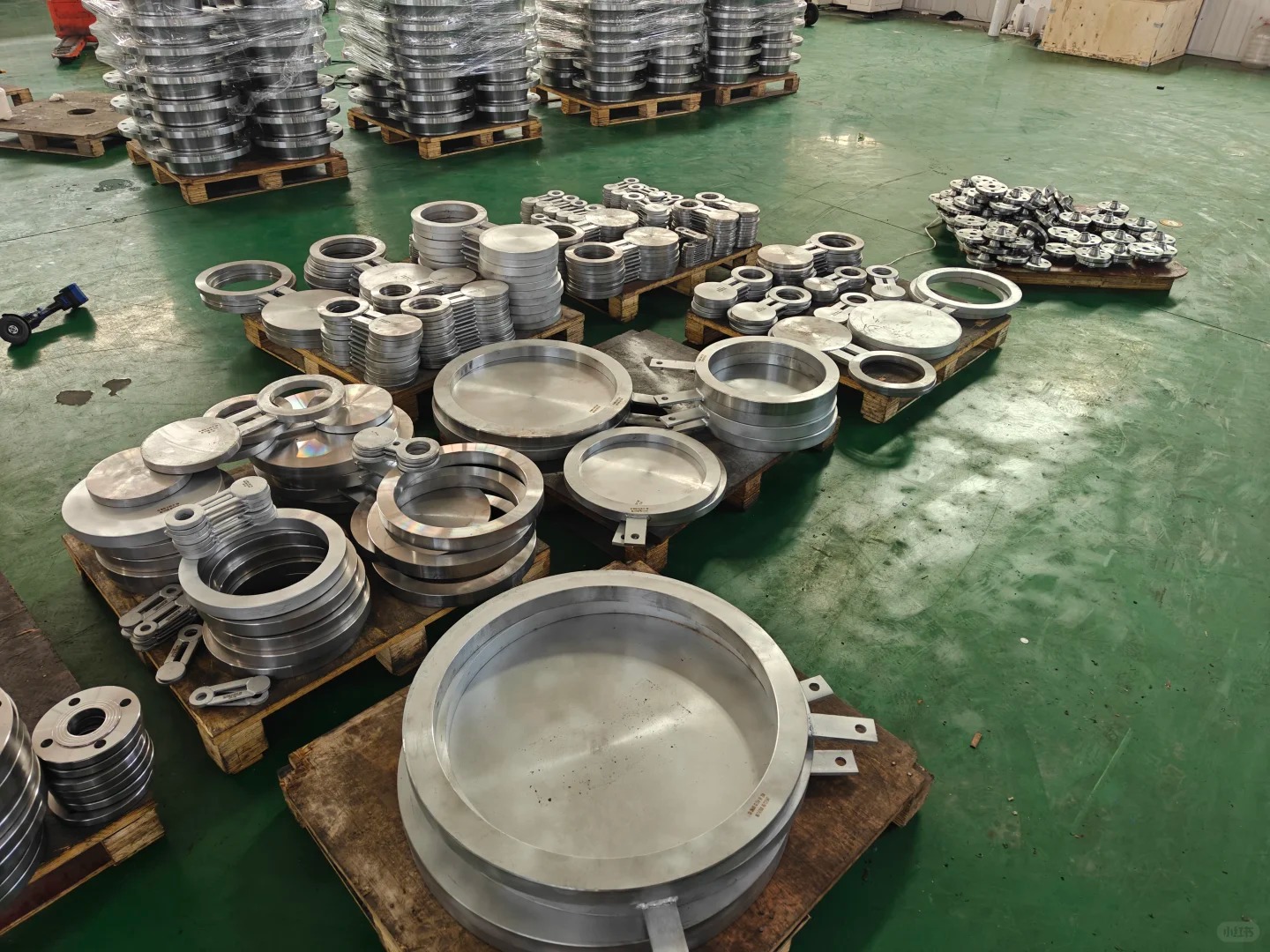

Key Features & Benefits:
-
Flow Maintenance: Precisely machined bore allows full, unrestricted flow when the line is in operation .
-
Visual Identification: Extended handle provides immediate visual confirmation that the line is open (unlike blanks which indicate closed position) .
-
Positive Isolation System: Works in conjunction with paddle blanks to create a complete isolation solution for piping systems .
-
Durable Construction: Engineered to withstand high pressures and temperatures with no moving parts to wear out.

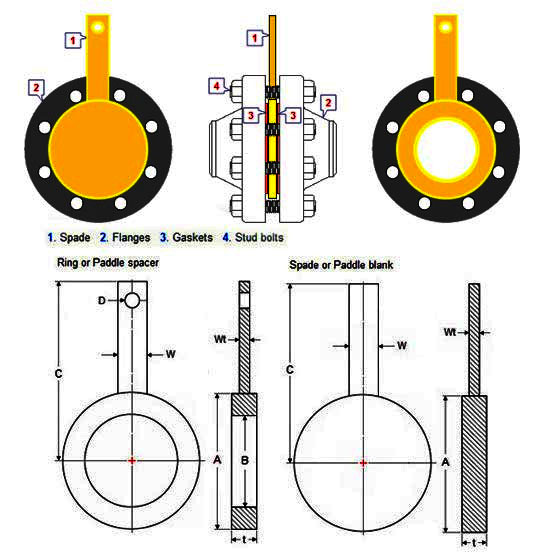

| NPS | O | A | T | W | B |
|---|---|---|---|---|---|
| 1/2 | 45 | 60 | 3.0 | 38 | 16 |
| 3/4 | 54 | 70 | 3.0 | 38 | 21 |
| 1 | 64 | 80 | 3.0 | 38 | 27 |
| 1-1/4 | 73 | 90 | 6.4 | 38 | 42 |
| 1-1/2 | 83 | 100 | 6.4 | 38 | 48 |
| 2 | 102 | 120 | 6.4 | 51 | 61 |
| 2-1/2 | 107 | 140 | 6.4 | 51 | 73 |
| 3 | 133 | 150 | 6.4 | 64 | 89 |
| 3-1/2 | 159 | 175 | 9.7 | 64 | 102 |
| 4 | 172 | 190 | 9.7 | 64 | 114 |
| 5 | 194 | 215 | 9.7 | 76 | 141 |
| 6 | 219 | 240 | 12.7 | 76 | 168 |
| 8 | 276 | 300 | 12.7 | 76 | 219 |
| 10 | 337 | 360 | 15.7 | 102 | 273 |
| 12 | 406 | 430 | 19.1 | 102 | 324 |
| 14 | 448 | 475 | 19.1 | 108 | 356 |
| 16 | 511 | 540 | 22.4 | 108 | 406 |
| 18 | 546 | 580 | 25.4 | 114 | 457 |
| 20 | 603 | 635 | 28.4 | 121 | 508 |
| 24 | 714 | 750 | 31.8 | 140 | 610 |
