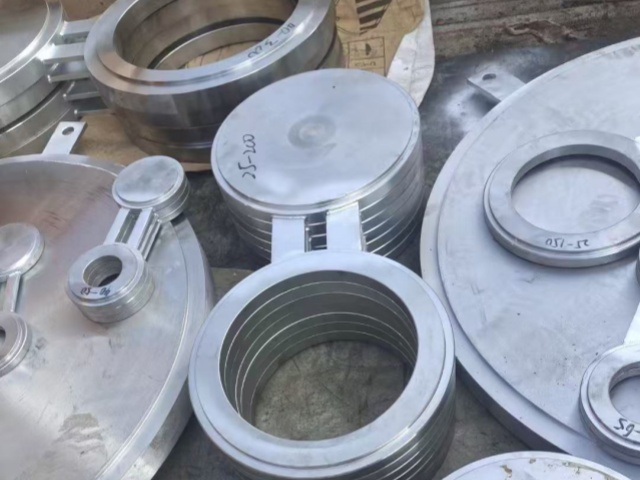

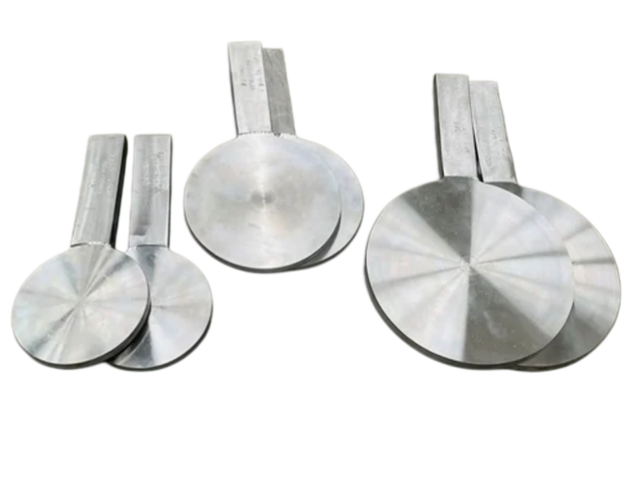

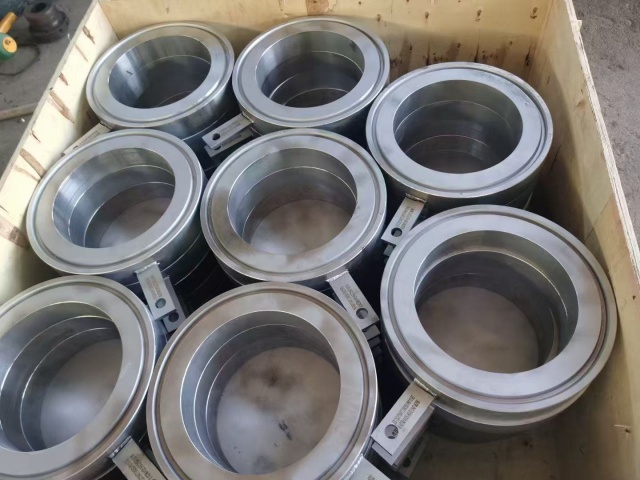

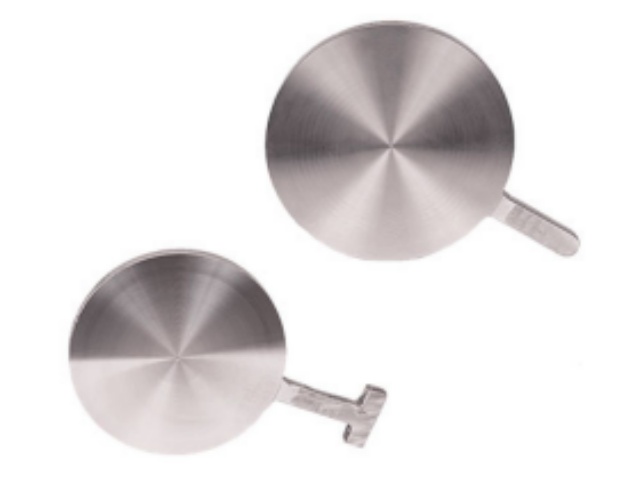

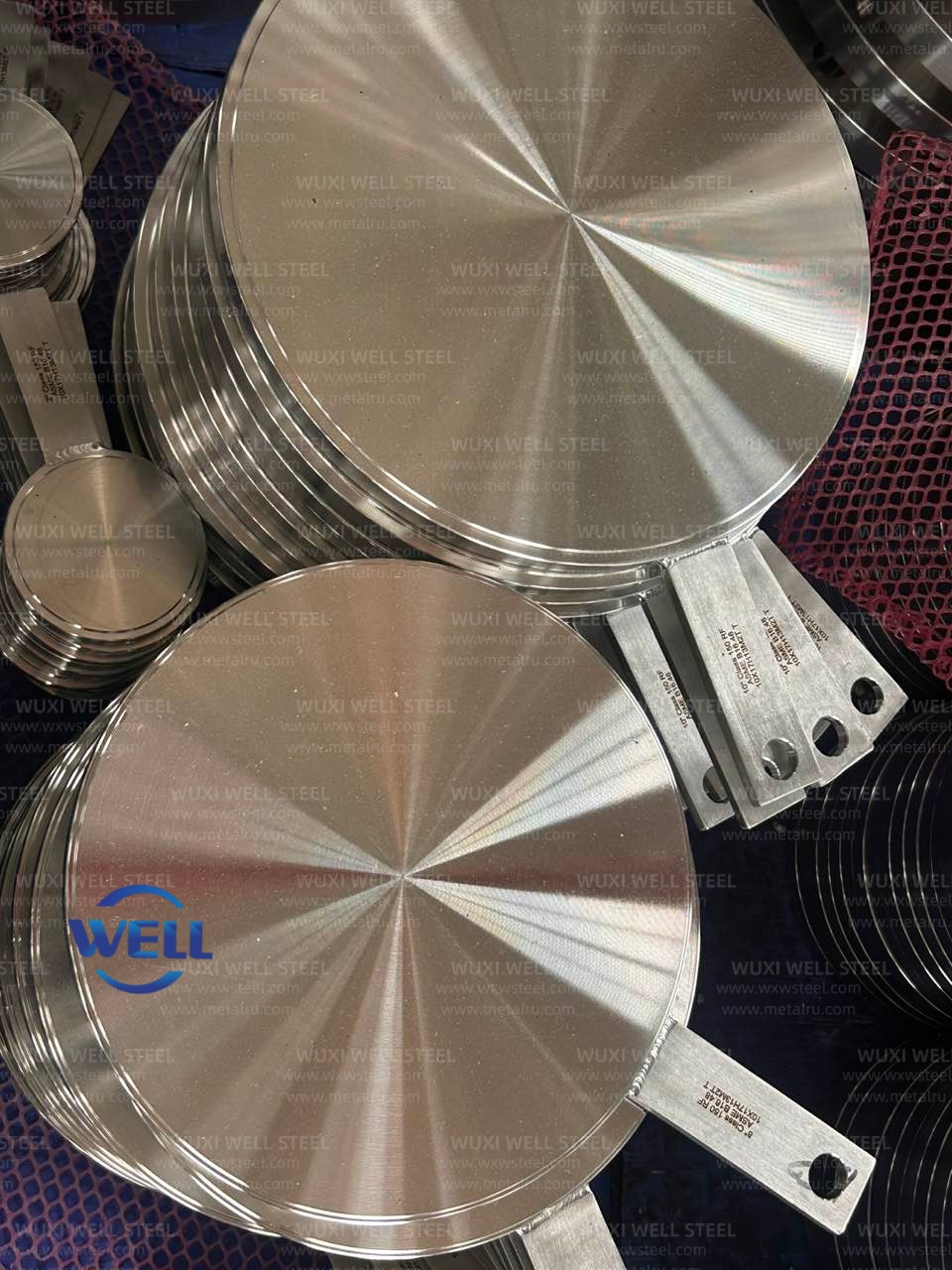

Paddle Blank

Also called: Paddle Blank, Spade Blank
Standard：ASME/ANSI B16. 48, B16.5, B16. 47 A, ГОСТ 12826-60.
Size Range: 15 mm-1500' mm (1/2"-60")
Sealing Type: Flat Face, Raised Face, Ring Joint
Materials: 321, 304/304L, 316/316L,316Ti,16MN, St.20 09Г2С, 12Х18Н10Т, 10Х17Н13М2Т, 08Х17Н13М2Т

Get a price

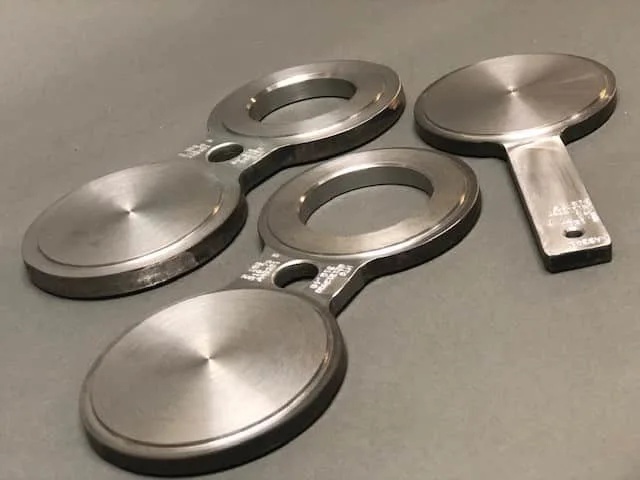

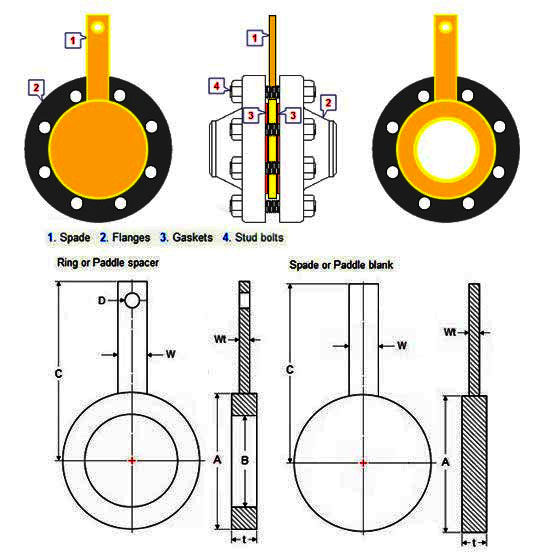

A Paddle Blank is a safety device used in piping systems to provide positive isolation of a section of a pipeline. It consists of a solid metal plate designed to be installed between two pipe flanges, creating a physical barrier that completely shuts off the flow of media.

Unlike valves that may leak over time, a paddle blank guarantees a 100% leak-proof seal, making it essential for maintenance, safety, and testing operations.

Key Features & Benefits:

Positive Isolation: Provides absolute shut-off by creating a metal barrier, ensuring zero leakage for maximum safety.

Visual Identification: The extended handle clearly indicates whether the line is open (if used with a spacer) or closed (blank installed).

Versatility: Suitable for a wide range of industries and media, including liquids, gases, and steam.

Durability: Engineered to withstand high pressures and temperatures, with no moving parts to wear out.

NPS	O	A	T	W	B
1/2	45	60	3.0	38	16
3/4	54	70	3.0	38	21
1	64	80	3.0	38	27
1-1/4	73	90	6.4	38	42
1-1/2	83	100	6.4	38	48
2	102	120	6.4	51	61
2-1/2	107	140	6.4	51	73
3	133	150	6.4	64	89
3-1/2	159	175	9.7	64	102
4	172	190	9.7	64	114
5	194	215	9.7	76	141
6	219	240	12.7	76	168
8	276	300	12.7	76	219
10	337	360	15.7	102	273
12	406	430	19.1	102	324
14	448	475	19.1	108	356
16	511	540	22.4	108	406
18	546	580	25.4	114	457
20	603	635	28.4	121	508
24	714	750	31.8	140	610
